Nibble meaning – what is it?

Computing technologies are constantly evolving and as the demand on systems increases, companies and users require ever greater capacities for data storage and transmission. Standard storage media have grown so much in capacity that information units such as the megabyte and gigabyte have become commonplace. When transmitting data, we encounter information such as Mbit/s which corresponds to a transmission rate of 1,000,000 bits per second.

To understand the amount of data behind these terms, it is a good idea to get to know their smallest building blocks. While many users are already familiar with bits and bytes, the nibble is still fairly unknown. In the 1970s, the unit marked the beginning of faster data processing developments. We introduce the nibble and its meaning and explain how converting information between individual units works.

A “nibble” (also “nybble” and “nyble” when referring to a “byte”) is the second smallest unit of information for data transmission and storage. The term is a play on the word “bite” and alludes to being a fraction of a byte. More precisely, a nibble corresponds to half of a byte and thus four bits.

The nibble unit was developed in collaboration with the BCD code (Binary Coded Decimal), in which four bits each represent a digit between 0 and 9. These four bits correspond to one nibble. By putting multiple bits together, computers and processors work faster. So-called 4-bit microprocessors were already in use at the beginning of the 1970s. Here, the amount of data that the processor processes in a single step consists of four bits or a nibble. This system laid the foundation for the development of more powerful processors. Later, they were summarized as 8, then 32 and finally 128 bits.

One bit is the smallest binary information unit and represents the status 0 or 1. This measure cannot be further subdivided. There are many other units that represent multiples of a bit. One of the best-known representatives is the byte, which consists of eight bits. Since a bit can have two different states (0 and 1), there are some 28 possibilities for one byte. A byte corresponds to the smallest possible amount of data, making it an important measure to indicate memory size.

A nibble corresponds to exactly half of a byte and therefore consists of four bits. This also results in the alternative designation “half-byte”. However, the nibble didn’t always consist of four bits. For example, Apple software first combined five and later six bits into a nibble. Nowadays, the term exclusively refers to four bits. To make things fool-proof, some in the industry use unmistakable terms such as “semi-octet”, “quadbit” or “quartet”.

A nibble can have 16 (2⁴) different values from 0 to 15. In binary numbers, this corresponds to the values 0000 and 1111 and all their possible combinations. This unit of information is primarily used in microcontrollers, communication protocols, or assembly languages.

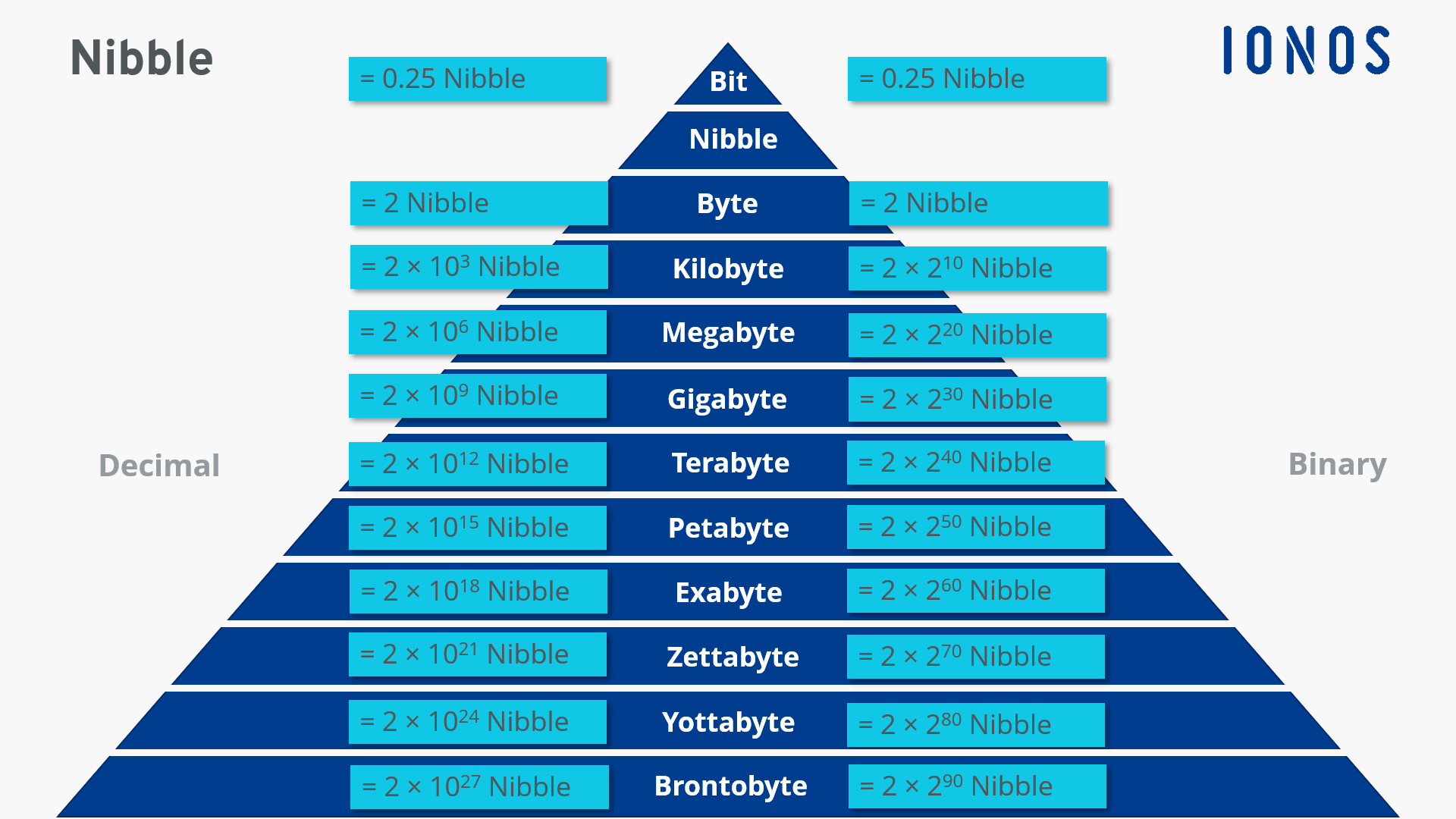

Nowadays, small units of information such as bit, nibble, and byte are no longer suitable to legibly represent the amount of data and storage capacities. Therefore, different units exist to represent the multiples of a bit. The following table gives an overview of common data volumes and their conversion factors.

The term “nibble” emerged in 1958 through a joke remark by the late Professor David B. Benson. When speaking to a programmer from the Los Alamos Scientific Laboratory, Benson referred to “taking half a bite”. The professor remembered the statement when he named the representation of a digit by four bits and thus introduced the nibble.
